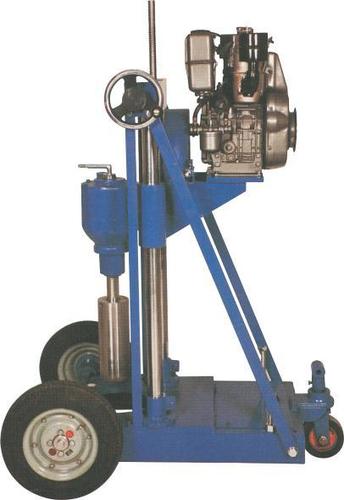

Core Drilling Machine

Core Drilling Machine
Core Drilling Machine
Send Inquiry
Product Code : RLE-507
Product Description

Brand Name- Reliable Lab Equipment Co.

Model no- RLE-507



The Pavement Core Drilling Machine is petrol engine powered. Road/Building drill has been designed specifically for the purpose of drilling test cores from or holes in, Roads, Airport Runways, Bridges etc.
The Machine comprises of two vertical support columns, which carry the Drill head/Engine assembly with the help of screwed spindle.
The 5 HP petrol engine with pulley mechanism works with minimum vibrations. The double precision bit advances with screwed spindle, which provides a constant, accurate drill pressure, minimum core chipping & long bit life. The complete assembly is supplied on a rigid metal base with leveling facility and is suitable for vertically down coring applications only.

Bit Diameter       Varying from 25mm to 150mm
Maximum depth of core       700mm
Drill Speed         475 & 800 R.P.M.
Guide Shafts       50mm dia
Screwed Spindle       20mm dia
Water Tap            12mm
Drill Wrenches     Included
Water Tank          Included
Levelling Pads     Included
